OpenMusic Tutorials

Prev| Chapter 3. Using Aleatoric Elements| Next

Tutorial 13: Another random sequence

Introduction to durations, velocities and legato

Topics

The inputs _ldur_ , _lvel_ , and _legato_.

Key Modules Used

om-random, Chord-seq, repeat-n, dx->x

The Concept:

We use a similar structure here, extending our random procedure to the onsets and durations of the notes.

The Patch:

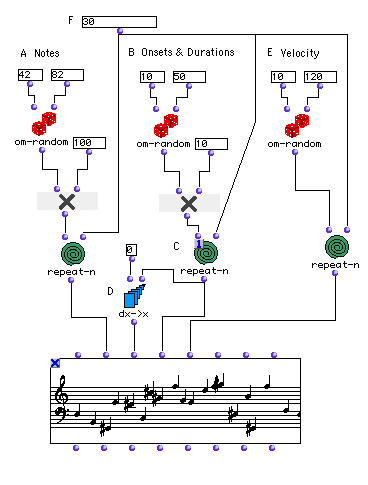

We will use the same patch as in tutorial 10. om-random will be back in its normal mode, because here we don’t need repeated notes.

At (B), we will use patch we used for durations with slightly different parameters to produce lists of numbers appropriate to onsets and durations. om-random will generate values between 100ms to 500ms. (Durations and onsets in OM music editors are always expressed in milliseconds.)

We want to create a sequence with no gaps between the notes. This means that the onsets and the durations have to match up. We make sure that the same sequence is used by setting repeat-n to ‘eval-once’ mode.

There’s another problem. Durations are simply the durations of the notes once struck. Offsets, on the other hand, are measured from the beginning of the sequence. This means we can’t use the same list for both _lonset_ and _ldur_ inputs. Using dx->x, we turn the list of durations (the time between notes) into a list of onsets relative to the starting time, 0.

As we just learned, notes in a Chord-seq can overlap. The Chord-seq object can thus accept polyphonic input. For example, place a Midifile class in the patch and evaluate it. A dialog window comes up. Look for the file INV6.MID in the exampleFiles/Midi folder, in the main OM folder. This is a MIDI file of the 6th two-part invention by J.S. Bach. Once evaluated, lock the box.

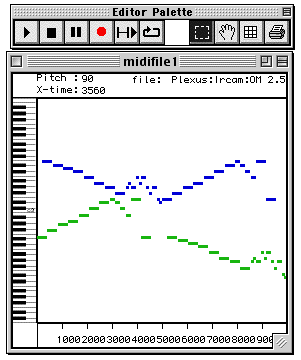

Opening the Midifile brings up a piano-roll style editor where you can see the two channels of the MIDI file, color coded for clarity:

The Chord-seq class can take a MIDI file as input to its _self_ input, and it will be transcribed:

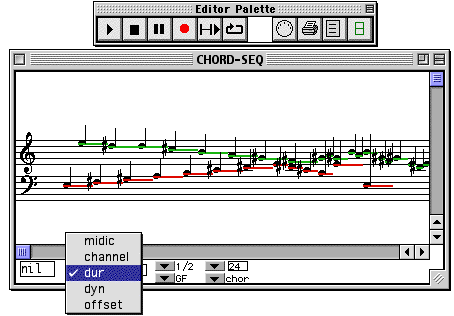

Opening the resulting Chord-seq and selecting dur from the view options pop-up menu will show the durations of the notes represented as colored bars:

Returning to our patch, giving a single number to all 3 second inputs of the repeat-n box causes each element to be evaluated 3 times, producing lists of the same length for our midics, onsets, durations, and note velocities.

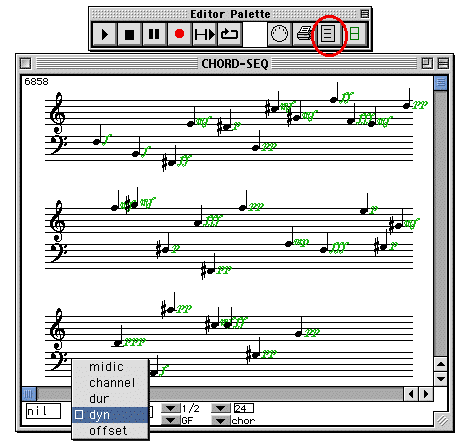

Note velocity is MIDI’s way of indicating how hard a note is struck. You can visualize the velocity by selecting dyn from the view options pop-up in the editor. Here is an example in page mode, which is turned on using the page view button, circled in red.

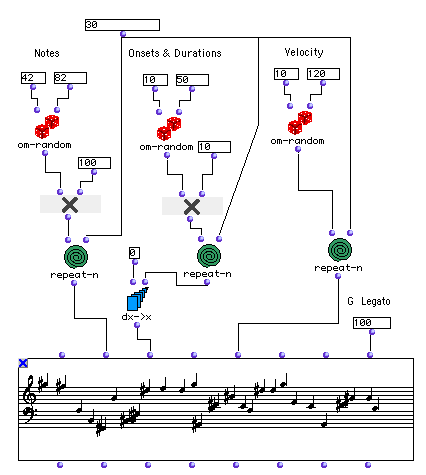

OM turns the velocities into traditional dynamic marks using a table you set up in the Preferences panel. Now look at the far right-hand input, _legato_. Setting this to 0 leaves durations as they are. Any other number, however, will override the _ldur_ input, and set the durations to a percentage based on 100 being perfect legato- each note lasting exactly as long as it needs to. Smaller numbers will result in gaps in the sequence, longer numbers in overlaps (you need to set the view to dur).
