Tutorial 42: Creating a Generic Function I

A general approach

Topics

Creating your own generic functions in OM

Key Modules Used

The LISP function +, omloop

The Concept:

Here you will learn how to create your own generic functions. What is a generic function? There are many different data types in the OM environment. As you have seen, certain functions in OM can respond to more than one data type. Take om+, for example. When you give it a number and a list, it adds the number to all the elements of the list. However, you can also give it two numbers, in which case it simply adds them. How does it know what to do?

It turns out that within the function om+ are a series of sub-functions called methods. A method is a set of instructions for processig a specific combination of data types in a function. When you use om+ with a list and a number, om+ automatically calls a method for adding a list and a number. You can see the methods of a function by opening its box with a double-click. If the function cannot find a method appropriate to the data types you are trying to give it, it generates an error.

A function composed of methods for different data types is called a generic function. All OM functions are generic functions. The advantage of working with generic functions is that operations which are conceptually similar but apply to widely differing data types can be organized into a single function with a single name, which is much more logical for humans.

You can write your own generic functions in OM. We will create a single function called myplus and then add methods to it so that it can deal with a variety of different data types, in the same way as om+.

Creating the Function

In order to create a generic function, one must first open a patch. Then, in the patch window, select File->New Generic Function.

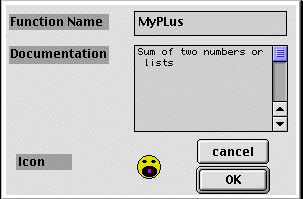

A dialog box opens:

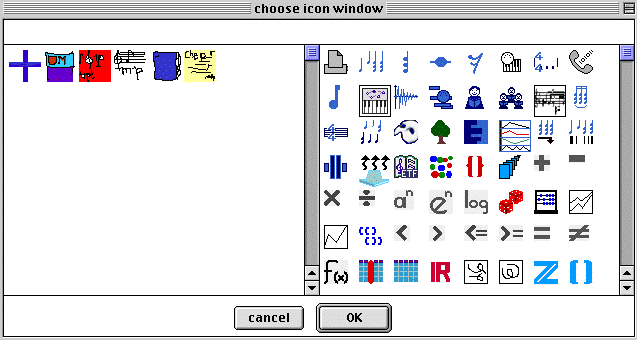

Give your function the name myplus, and add a remark about what it does. This documentation will be used in the pop-up bubble help you get with command-click. To change the icon, click on it. This window will appear:

Icons on the right are standard OM icons. Icons on the left are user- customizable icons.

You may customize the icons using a resource editor such as ResEdit and adding these icons to the file WSPL.rsrc file in the current workspace folder.

Be careful editing these resources. Always work with a copy!

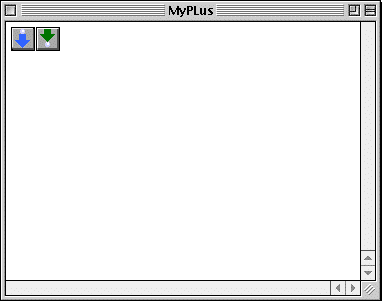

After editing the name and icon and hitting OK, the function’s editing window will appear:

This looks and acts a lot like a normal patch window. We can add inputs and outputs and combine other functions and patches in any way we like. The difference is that we must ‘type’ our inputs. When you add inputs to a patch, they are a universal type (in fact, they are the LISP type t) which can apply to any data type. Click the button to add an input. A type of input you’ve not seen before appears:

Remember how we said function inputs have data types? Well, this input is of type t. For know, you should know that t (its our old friend, the truth value used in LISP predicates) is effectively a universal data type. Any type of input can pass through a t input. For this reason, a method for type t will always be called if a more appropriate one cannot be found. You could leave it like this, but that would defeat the purpose of creating methods for different data types. We want to create a different type of method, however.

Let’s start by defining a method for adding two integers. We need two inputs, if you haven’t already added them.

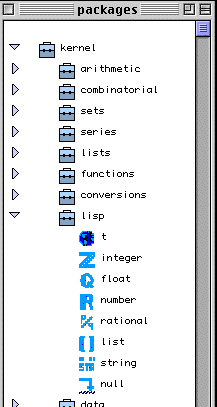

In order to type our inputs, we drag an icon representing the data type we want to handle onto the input. These are all found in the Packages folder. We find all our functions and classes in this folder. In fact, any class is a data type when used as a function input. integer is a class (data type) that is part of the LISP kernel of OM. Go into the Packages folder and open the kernel:lisp package:

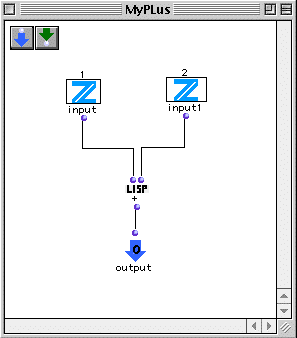

We see a list of all the basic LISP classes (data types). Drag the icon for integer to the two input icons in your patch window. The icons change to represent the new typing. Now add the function + by command-clicking in the window and typing +. Connect the two inputs and add an output:

Close the window. Our function is now in the Functions menu:

This function adds two integers, just like the LISP function +. It is equivalent to the LISP expression (+ 5 3).

myplus doesn’t know how to deal with lists, however. Let’s add a method allowing myplus to handle an integer as its first argument and a list as its second.

Once you’ve used myplus in a patch window, double click it to open its methods window:

Notice that our first method has icons representing the data types it accepts. While in this window we add a new method with File->New Method:

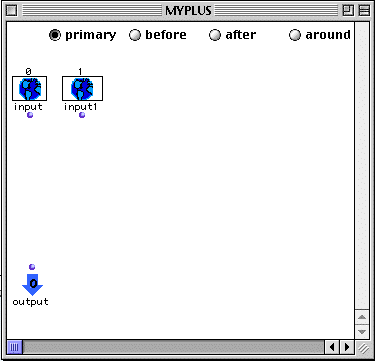

A new editing window will appear with some extra radio buttons in its upper part. Don’t worry about them for now. Here we edit a second method for our function. Notice that the two inputs are already present. Methods ALWAYS have the same number of inputs, so they are added automatically, and cannot be removed.

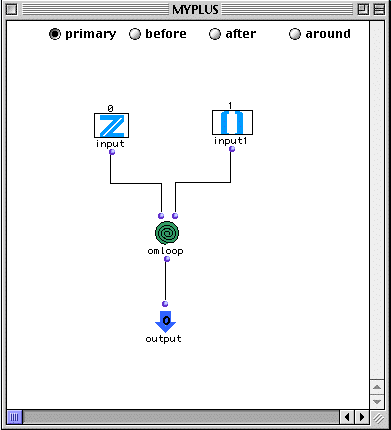

Drag two classes from the LISP package, but this time make them one integer and one list:

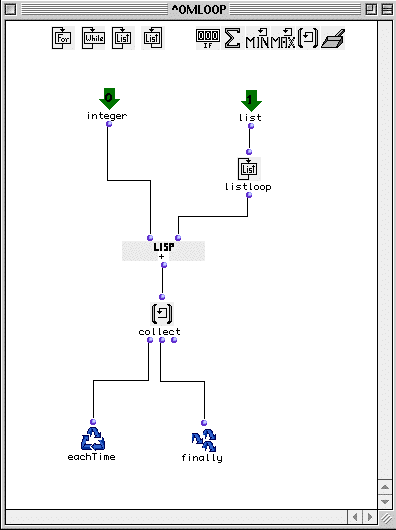

Create an omloop and configure it:

Close the patch window. You now see another method in the window with the appropriate data type icons.

Add another method, this time with the data types list and integer. It’s just like the one we just added, except that you have to reverse the inputs.

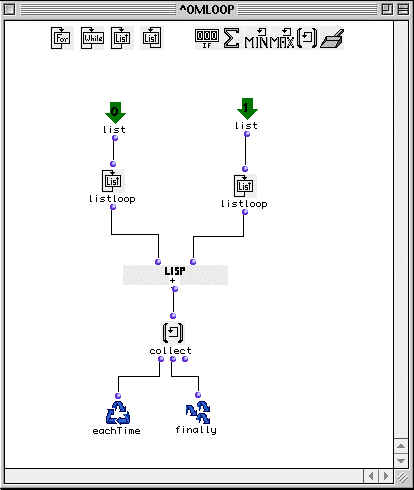

Add a third method for two lists. The omloop function will look like this:

We now have 4 methods in our myplus function:

We can now accomplish all four types of addition, as presented in the Tutorial patch:

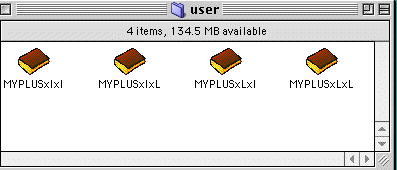

User-created generic function definitions are stored in the Workspace folder, in the subfolder user:

If you want to use them in other workspaces, you must copy them to the user folder in the other Workspace folder.
