OpenMusic Tutorials

Prev| Chapter 1. Using Musical Objects I| Next

Tutorial 5: Retrograde

Topics

Here we perform the basic musical operation of retrograde on a group of notes. We’ll transpose it in the process.

Key Modules Used

Chord, Chord-seq, om+, reverse

The Concept:

Here, we’ll take the _lmidic_ output of the Chord factory. You can check to see what’s coming out of the factory at this output by option-clicking this output. If you haven’t changed the notes, you’ll see this in the Listener window:

? OM->(6000 5600 6400 7800 7200 7100)

Remember that the order of notes here just represents the order they were entered in. This list of midics will be passed to om+ for a transposition and then retrograded with reverse.

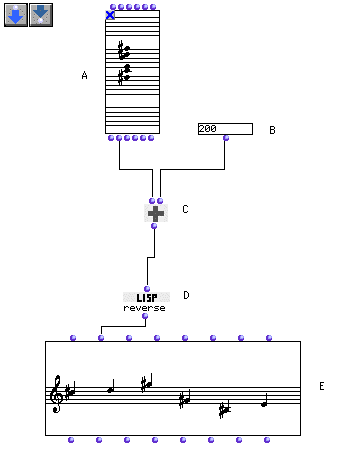

The Patch:

The midics are passed to om+. Notice that om+ can accept both a list and a single number as inputs. In this case, it adds the single number to all the elements of the list.

The resulting transposed list is reversed with reverse, which does just what it says it does. The new sequence of notes is plugged into the second input of a Chord-seq object. We could have plugged it into a Chord object, but the retrograde would not have been visible since the notes would have been stacked one on top of the other. (Unless we went into the editor and used the order selection from the pull-down menu)
