General Features

The OMLoop module is a specific type of abstraction - or patch. It encloses a number of specialized components, which allow to design iterative programs. Programming takes place in the internal editor of OMLoop.

—|—

OMLoop Editor and Components

Editor

To open the OMLoop editor, double click on the OMLoop box.

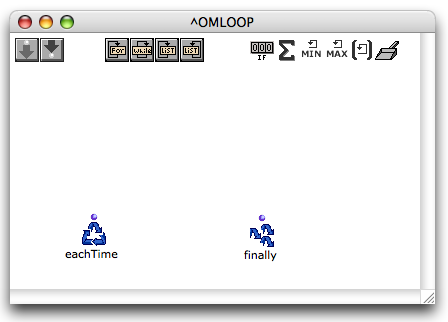

The OMLoop editor resembles a patch editor.

The OMLoop editor resembles a patch editor.

Components

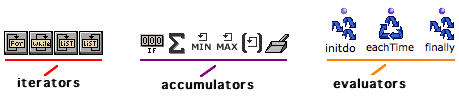

OMLoop provides three types of programming components :

Iterators and accumulators are visible at the top of the OMLoop editor and can be added with a click. The choice of iterators and accumulators depends on the iteration program.

The eachtime and finally evaluators are essential components which are displayed by default in the editor. Initdo can be added typing its name in the editor.

Adding Inputs and Outputs

Initially, the OMLoop box has only one output and no input : programming can be done without the use of external data, like with a patch.

Additional outputs and inputs can be added using the following procedures.

—|—

Inputs

Inputs transfer incoming data to the programming functions of OMLoop. They are represented green top-down arrow inside the editor.

—|—

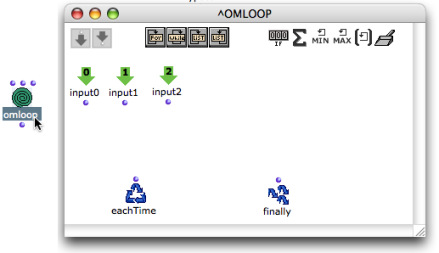

The OMLoop editor shows additional inputs, as well as a number of default
internal components.

The OMLoop editor shows additional inputs, as well as a number of default internal components.

** To add or delete an input in the OMLoop box,

—|—

Outputs

OMLoop outputs are managed with another procedure.

The finally evaluator represents the visible output(s) of OMLoop. It returns the results of the iteration. ** Outputs ** can therefore be added and deleted by adding or deleting ** optional inputs **to and from Finally.

—|—

To add or delete inputs to finally :

Outputs also represented on the OMLoop icon once added.

About Evaluators :

About Evaluation in OMLoops
