Creating and Using Pathnames

Generalities about Pathnames

** Pathnames ** designate files, folders and their location on a computer system. They are mainly used by the programs to read and write information stored on the hard disk.

Files Names

File names , such as “diary.txt”, are generally made of a main name : “diary”, and an extension preceeded by a dot : “.txt”

Representations on Unix-Based Systems and Windows

This slash also represents the system root directory. For instance :

/Users/lucy-smith/documents/souvenirs/old-diary/diary.txt.

The root directory of the disk drive is represented by a character identifier followed by “:” . For instance :

C :\Users\lucy-smith\documents\souvenirs\diary\diary.txt

—|—

Absolute and Relative Pathnames

Pathnames can be absolute[1] or relative[2]. An aboslute pathname describes a path from the root directory to an object. A relative pathname describes a path from the directory wherein the user is working. This directory is called the “current directory”. Upstream directories are called “parent directories”.

In relative pathnames, the current directory is expressed with “.” . Parent directories[3] are expressed with “..”.

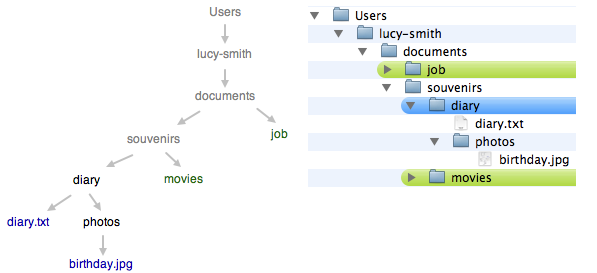

The current directory is "diary".

The current directory is “diary”.

Manipulating Pathnames in Common Lisp

Independent Use of Pathnames

In Common Lisp , pathnames can be handled independently from any operating system.

A pathname is represented with ” #P” followed by the pathname, as formulated in UNIX representations with a string[4].

For instance ** : #P”/Users/lucy-smith/documents/souvenirs/old- diary/diary.txt

Constructing and Inspecting Pathnames with Common Lisp

A pathname can be described with several components, such as : a name[5], a type[6], a directory[7] and so on. Pathname components such as names, types and directories are expressed with strings[4], such as :name “my-file” or :type “txt”

Converting Strings / Pathnames

The namestring and pathname functions alllow to convert pathnames into simple strings and vice-versa.

Representing Directories in Lisp

To represent the directories wherein a file is located, write a list of directory names preceeded by the :abolute or :relative symbols. For instance, the pathname from a root directory to a file named “my-file” is created as follows:

(make-pathname :directory ‘( :absolute “Users” “my-name” “directory1”) :name “my-file” :type “txt”)

Lisp Documentation

Find more information about pathnames in Common Lisp here.

Pathnames in OM

Creating a Pathname

The Lisp pathname functions can be used in OM as any other Lisp functions. The ** om-make-pathname ** is an additional facility provided by OM to build pathnames.

The keywords arguments of this function allow to specify a file name, extension, and a directory separately.

—|—

Using Strings in OM

In OM, many functions requiring pathnames as inputs also accept a string representation.

The File Chooser Box

The ** file-chooser ** box allows to select a file or folder via a pop up window.

It has three optional arguments, which offer several options to define the type of object and its location :

The output of the file chooser is the selected file or directory pathname, or nil.

Locking the File-Chooser

**Note **: lock the box to keep the selected pathname in the box. Otherwise, the file chooser dialog window will pop up at each evaluation.

—|—

References :

  1. Absoluate Pathname

An absolute pathname, also referred to as an absolute path or a full path, is the location of a filesystem object - file, directory or link- relative to the root directory.

  1. Relative Pathname

A relative pathname tells the location of a filesystem object relative to the directory in which the user is currently working.

  1. Parent Directory

A parent directory is the directory in which a given directory is located. In an absolute path, the parent directoy is the predecessor of the current directory.

  1. String

A characters chain between two inverted commas.

  1. Name

The name of a group of files that can be thought of as the “same’’ file

    1. Directory

Corresponds to the “directory’’ concept in many host file systems: the name of a group of related files (typically those belonging to a single user or project).
