Internal Abstractions

Internal abstractions are only created in patch editors. They are represented by red patch boxes . This section shows how to add an ** internal abstraction ** into a patch.

A red patch is autonomous :

• it is not attached to any external reference, conversely to a blue patch,

• it only “exists” inside the patch where it was created.

Adding an Internal Abstraction : Procedures

Contextual Menu

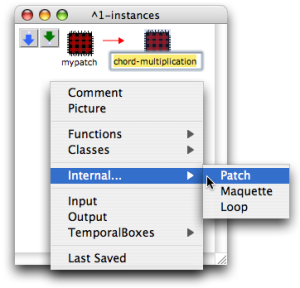

To add an internal - red - patch in a patch editor :

1. Ctrl / right click in the patch editor

2. choose Internal / Patch.

Double click on its name to edit it.

—|—

Directly in the Patch Editor

To add an internal patch directly in a patch editor :

• Cmd click in the patch editor

• type “patch” and validate.

—|—

Internal Programming

An internal patch is programmed just as in any patch, without restriction.

Duplicates

An internal abstraction cannot be affected by the modification of a possible duplicate.

Here a duplicate has been added inputs and outputs : the master item is preserved.

—|—
