Tutorial 30: Working with lists I

Generating lists of identical length

Topics

Creating rhythm from arithmetic series and “filling” it with notes from a chord.

Key Modules Used

arithm-ser, group-list, flat, length, om-round, om-scale, omquantify

The Concept:

This example creates a list of notes (L) containing the same number of elements as a list of durations (I) which are derived from an arithmetical series (A).

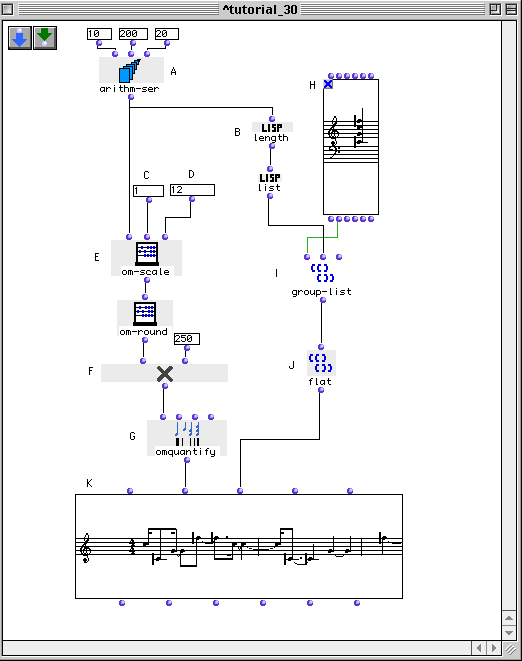

The Patch:

The arithm-ser box (A) creates an arithmetical series going from 10 to 200 by steps of 20.

The values you enter at (C) and (D) will correspond to the shortest and longest durations in your rhythmic sequence (They are of course arbitrary numbers which will be scaled afterwards).

Lets say that we want to build our rhythms with the sixteenth as the smallest unit. We’ll generate a scaled series and multiply it by 250, which will be a sixteenth note at the quarter note=60 tempo of the transcription. The module om-scale (E) scales the values coming out of the arithm- ser box (A) so that the series runs between the values entered in inputs (C) and (D). In order to round off the result we will use om-round. This way we are sure to have integers going from 1 to 12. These integers are multiplied by 250 to yield a list of durations which are passed to omquantify.

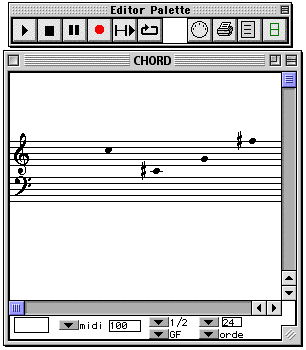

Our harmonic material is in the form of a chord:

Obviously we need to reuse notes if we want to create a list as long as the elements of our rhythmic series. Here we use a trick to get a list of exactly the right length. The module group-list puts the elements of a series into groups according to its second input. The third input is a little pull-down menu where you an set the mode to _linear_ or _circular_. In linear mode, the function stops when it runs out of notes. However, if we set it to _circular_ , it will start again at the beginning of the list as many times as necessary. We give it the list of midics at the first input. It expects a list of group lengths at the second input. We take the length of the rhythmic series and make a list of one element out of it. In this way, group-list will generate a list of exactly the right length to accompany our rhythm. We need to flatten it before passing to the Voice.

Try changing the values of the original arithm-ser and evaluate the results.
