Tutorial 34: Introduction to Lambda Functions

Topics

The lambda mode for function boxes.

Key Modules Used

mapcar, om-random, repeat-n, arithm-ser, dx->x

The Concept:

Patches and functions in OM have different states. We have already seen two of them (the ‘lock’ state in Tutorial_1 and the ‘eval once’ state in Tutorial 12 There are two others; here we introduce the lambda state (λ). Any OM patch or function can be put in lambda mode. This state is used whenever a function calls another function as an argument, in order to apply this second function to some data. These are generally standard LISP functions such as funcall or mapcar. In this tutorial we’ll look at two instances of their use.

To put a patch in lambda state, bring up the ‘lock’ mark (an X) by selecting it and hitting b. Then click the X representing the lock twice. The X becomes a 1 and then a letter lambda, λ:

|
—|—

Now let’s look at our examples.

The Patch:

The first example

The mapcar function takes as a first argument another function and applies that function it to its other arguments. This called function at the first argument can have any number of inputs. Since mapcar passes the elements of its inputs as arguments to this called function, mapcar must have as many additional inputs as there are arguments of the called function. These inputs must themselves take lists. mapcar takes one element from each list and passes the group to the elements of the called function. It does this with each successive element of all the lists until the shortest list is exhausted, collecting the results in a list.

You’ll notice that we’ve typed the function name, list, into the box given as first input to mapcar. This works only for LISP functions (functions whose icons are the word LISP). This is a shortcut; we could have added a list box, put it in lambda mode, and attached it.

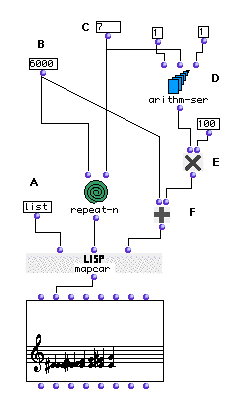

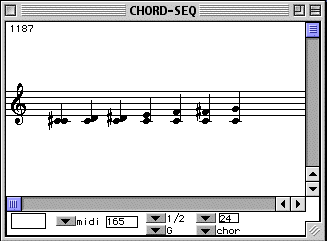

In this patch we will construct a chromatic scale from C3 to G3 and add a C pedal to it as shown below:

In terms of the patch, this pedal is added by putting each midic of the scale into a list with the midic 6000 with the list function. It would be tedious to perform the list function 7 times. It would be more work to write an omloop to do this. mapcar does it all in one step. We give it a list of chromatic midics and list of 6000s of the same length and tell it to apply the list function to the pairs.

We use an arithm-ser to create the scale and repeat-n to create the list of 6000s. The results of the mapcar function are:

? OM->((6000 6100) (6000 6200) (6000 6300) (6000 6400) (6000 6500) (6000 6600) (6000 6700))

The Second Example

Here we use the output of an abstraction of the patch from Tutorial 30 and modify it. We will add some ‘noise’ to the onsets of the notes, in the form of a small random quantity added to or subtracted from each duration, and turned into a new onset. Again, this could be done with omloop. It’s faster, however, to do it with mapcar. In this case, we want to add a random value to each element of the _ldur_ output of the Chord- seq.

So, we write a patch that will do this to a single number, and then send the patch in lambda mode to mapcar, secure in the knowledge that mapcar will apply it once to each element of the list at its other input(s). In this case we only need one input since we are modifying the elements of just one list.

In Tutorial 30, an arithmetic series was turned into a list of durations. This series is graphed here using a BPF:

Notice the more or less linear movement upward. (The roughness is a result of the small number of data points.) What if we messed around with the values just a little bit in a random way, generating a shape that, while still moving up, is les linear:

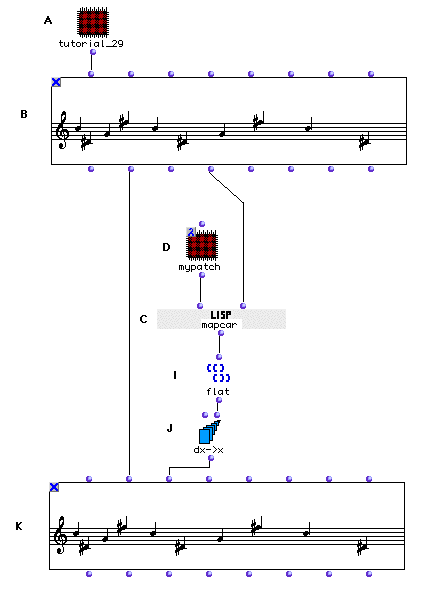

We drag the patch Tutorial_30 into a new patch and make an abstraction of it with a so that we don’t screw up the original patch. We open it and add an output, connecting it to the _self_ output of the Voice factory.

In order to access durations from a Voice object one must use a Chord-seq. Therefore, we will connect the output of the Tutorial_30 patch to the first input of a Chord-seq (B).

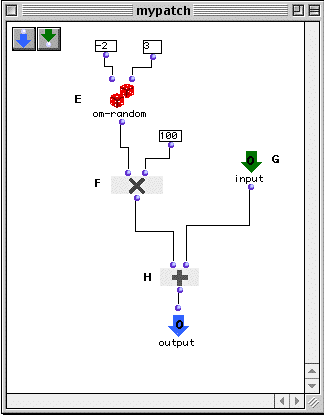

We build a red patch which takes an integer and adds a random value between -200 and 300:

We need to convert these durations into onsets with dx->x, but dx->x only takes flat lists as input. So we use flat to make it acceptable to dx->x and pass it to the _lonset_ input of the Chord-seq, using the _legato_ argument to make sure things sound goooood.

Evaluating this patch varies the onsets of the notes in a small random way each time. Try evaluating it several times, listening to the results.
