Example 1 : Programming With the Self Input Box

Adding a TemporalBox into a Maquette

Each output of the Self Input Box can be connected to other boxes within the patch of a TemporalBox.

This internal maquette contains one TemporalBox.

—|—

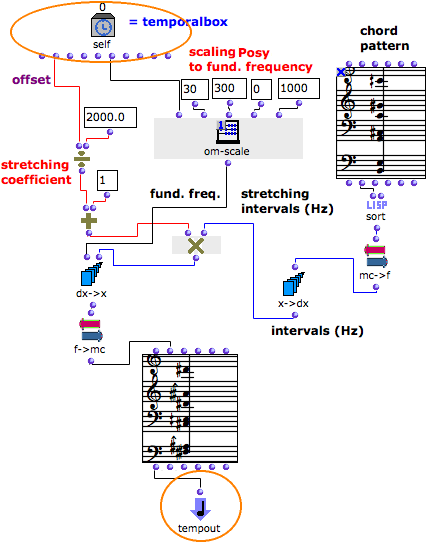

Applying the Self Input Box Values Inside a Temporalbox : Programming a

Chord

  1. The “ posy “ - of the box is returned by the Self Input Box in the patch. Om-scale scales it between 30 and 300, range of a fundamental frequency.

  2. A “pattern-chord” provides a harmonic structure that can be modified by the program.

* Mc->f converts the pitches of the chord into frequencies.
* X->dx returns the intervals of the chord, starting from the fundamental.    3. The box's " **offset** "  is returned by the Self Input Box and converted into a **stretching coefficient** that applies to the intervals of the chord.
  1. Eventually, these intervals are added to the fundamental frequency.

  2. The resulting list of frequencies is converted into midicents by f->mc and returned to a chord box. This chord becomes the musical value of the box via a connection to the Tempout.
