Workspace(s) Management

A workspace has two functions :

The Workspace therefore both refers to a window in the OM environment, and to a folder located on the user’s hard drive. The number of workspaces, their name and location is at the user’s discretion : several workspaces can coexist on the same machine, but ** only one workspace can be open at a session **.

This chapter provides information about the content of the workspace window and folder, and directions to manage one or several workspaces.

Organizing Workspaces

A workspace containing programs and storage folders.

A workspace containing programs and storage folders.

—|—

Workspace Window and Listener

Opening a Workspace

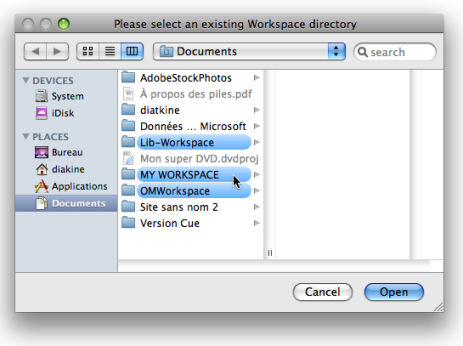

If you open or create a workspace at the beginning of an OM session, you will be asked to select a directory in your hard disk. It is advised to choose the user’s home directory , or one of its sub directories.

The Right Folder

Mind selecting the Workspace folder itself and not one of its sub directories when opening a workspace. If you select a sub directory, OM will generate a new workspace out of it, which will disorganize your folders.

The Listener

Once OM has been launched, the window of the selected workspace appears automatically with another window : the ** OM Listener **.

The Listener is a Lisp communication interface. With the workspace, it is a major element of the OM environment, so that both windows open automatically at the start of a session.

—|—

About the Listener

Workspace Folder

Contents

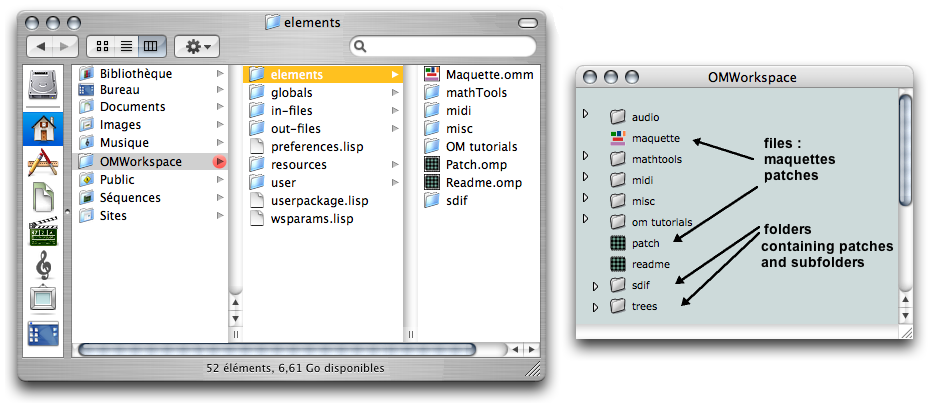

The elements folder and the corresponding workspace
window.

The elements folder and the corresponding workspace window.Zoom

The Workspace folder can contain a number of sub folders . These sub folders enclose the persistent documents[1] that are available for an OM session.

The elements displayed in the workspace window are actually stored in the Elements sub directory of the Workspace folder.

The Workspace Sub Folders

Full Information about the Workspace

Modifying the Workspace Folder during an OM Session

Modifying these folders can be extremely tricky and should never be done while OM is running.

Importing and Exporting Files at a Session

References :

  1. Persistent object/document, Persistence

A persistent object corresponds to a “real” file that is kept somewhere in the hard drive of the computer. Examples of persistent objects in OM are patches, maquettes, or global variables. The corresponding documents are kept in the Workspace folder. Conversely, a “non-persistent” object lays within a program but cannot be manipulated as an independent file.

  1. Patch

A programming unit where objects and functions - boxes - are interconnected to build a musical algorithm, that is, a sequence of instructions. A patch can also be embedded as a box within another patch.

  1. Maquette

A hybrid of visual program and sequencer, a programming unit provided with a time dimension, where musical material is organized in a time oriented structure.

  1. Global variable

An instance of OM object that has been saved in order to be used in other programs. Global variables are visible from the Library window and stored as .omi files in the Globals folder of the workspace.

  1. Instance

An actual object created at runtime, out of a given class. In OM, more specifically, an object created when evaluating a factory box. An instance can be saved as a global variable.

SHIFT click on an outlet - especially the first outlet representing the self, the whole object - of a factory box to materialize an instance.

  1. Class

A category of objects sharing common properties - characteristics and behaviour. A class specifies the internal structure and behaviour of an object. In OM, it is represented in a patch by a factory box that can produce an instance of a class.

See also : Object, Instance

  1. Function

A portion of code within a larger program, which performs a specific task. Operates upon 0 or more parameters and returns a value.

  1. Method

An elementary function or part of a generic function defining rules for its behaviour depending on a type of argument. Defining a generic function amounts to defining at least one method.

For instance, the OM+ function is made of four methods : 1. number + list / 2. list + number / 3. number + number / 4. list + list
