MIDI Events

All OM score and MIDI objects can be traduced (with more or less precision or data loss) into a list of time-tagged MIDI events.

The MIDIEvent box represents this basic MIDI element as an object in OM visual programs.

The MIDIEvent Box

The MidiEvent box represents a single MIDI event in OpenMusic.

The slots of the MidiEvent class are type, date, track, port, channel, and fields.

In-popup menus and MIDI selection tools can help setting the MidiEvent box inputs.

—|—

Attributes of MIDI Events

Selection Tools for Setting MIDI Event Inputs

A “Musical” Object

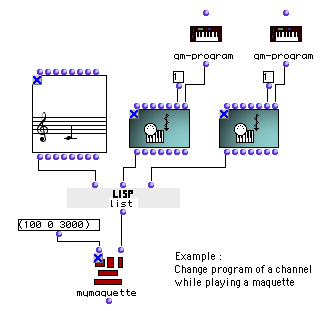

As other musical objects, MIDIEvent can be “played”, that is, sent to a MIDI output port. It can also be used and send MIDI messages at a given time in a maquette.

Playing Objects

Delay

If a date is set for a MidiEvent , it will be sent at the corresponding time (in miliseconds) after playing starts.

Extracting / Processing MIDI Events

Any types of MIDI or musical object (chord-seq, voice, note, eventmidi-seq, midifile, midicontrol, midi-mix-console,…) can be converted into a list of MidiEvents using the method get-midievents. It’s a very useful function, allowing all kinds of conversions and “MIDI processing” of the objects.

—|—

This function has an optional input where a lambda function can be connected to test and filter the MidiEvents.

Some predefined functions in the MIDI / Filters menu can be used for this purpose :

test-date : tests if the MidiEvents occurs beween a min date and a max date.

test-type : tests the MidiEvent type.

test-track : tests the MidiEvent track.

test-port : tests the MidiEvent port.

test-channel : tests the MidiEvent channel.

MidiEvent-filter : test various of the MidiEvent slots (type, track, port, channel).

Test on a MIDI Event

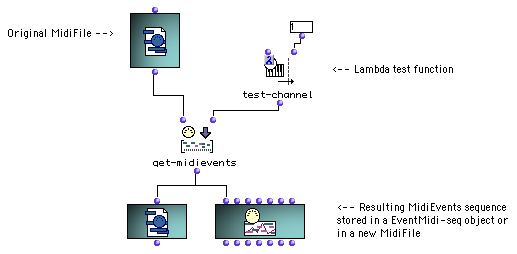

Filter MIDI Events from a Container Object

In this example, we filter all MidiEvents from a MidiFile with the same test as in the previous example. Get-midievents outputs a list containing all MidiEvents which channel = 1.

The resulting list can be saved as a new MidiFile, or stored in a EventMidi- seq object.

—|—

About EventMidi-seqs

Tests as Lambda Boxes

The test function is a parameter of get-midievent ; it must be a lambda function and have only one free input (for the MidiEvents to be tested).

More About Lambda Boxes

Designing Filter Functions

For more complex filtering functions, a patch (also set as a lambda box, with a single free input) can also be plugged to the get-midievents test input :

—|—

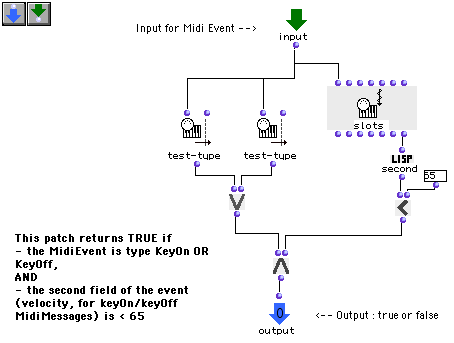

This is an example of what could be inside the patch test-func :

—|—

textual Events

Some MIDI events types are called “textual” (e.g. SeqName, InstrumentName, Lyrics, Copyright, …). It means that their contents (or “fields”) are a encoded textual data. To translate these fields into text (strings), use the me-textinfo method (can be applyed to MidiEvents or MidiEvents lists).

—|—
