Score Display

Displaying Information

Pop Up Menus

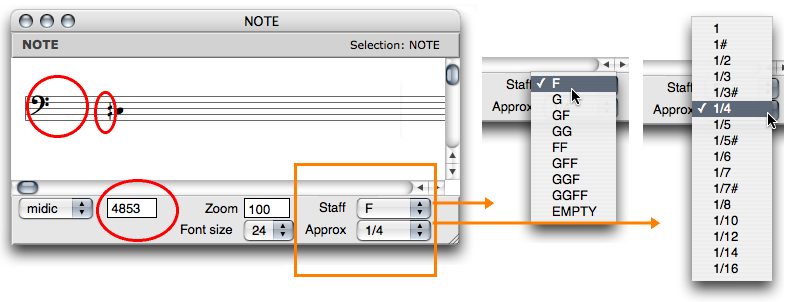

The note editor menus and controls.

The note editor menus and controls.Zoom

Pop up menus are mainly used for modifying the score displaying and player options :

Use the Zoom to adjust the horizontal spacing of notes.

Each scale has an adapted accidentals notation system.

The 1/6 tone notation system.

The 1/6 tone notation system.

—|—

Microintervals Notation

Editor Control Menu

The Editor Control pop up menu allows to select and visualize each of the parametric values attached to an object.

The midic parameter is selected by default, and the note is displayed permanently. This value can now be modified.

—|—

Staves Configuration

Non Polyphonic Objects

The staves configuration of notes , chords , chord-seqs and voices can be modified via a simple selection in the Staff pop up menu.

Polyphonic Objects

The staves configuration of polys and multi-seqs can be modified to the whole object’s scale, or to selected items scale.

—|—

Editors Displaying Parameters

Multipe Staves Configurations in Polyphonic Objects

All score objects, but note objects, offer multiple staves configurations - GG, FF, GGFF etc. -.

These configurations do no allow single staff manipulation : staves form groups which cannot be splitted for edition purposes .

—|—

Colour

Midi Channel

To change the note colour according to its midi channel, Press c

—|—

Note Colour

To change the colour of a note :

  1. press SHIFT + c

  2. select a colour in the Colour Chooser.

—|—
